Metenova MixOne

A complete single-use mixing solution
in hard containers

Metenova MixOne

A complete single-use mixing solutions in hard containers.
The MixOne is extremely robust and can be transported easily and without the difficulties that plastic bags face.

The solid plastic container guarantees the safety of the content. Another great advantage of the MixOne is the possibility to work with smaller volumes. The MixOne is a perfect solution if you are looking for a small volume mixing product, supporting you in your ramp-up, and enabling a secure process vessel for your high-value end-product.

Why? Because it mixes perfectly, starts up quickly, and comes ready-to-use without large investments. The robust container, mixer location, and impeller design come pre-optimized giving a reliable, repeatable perfect mixing result every time.

Easy to assembly and with the standardized Metenova superior mixing technology, this is the single-use platform for the future.

Leverage the Metenova mixing in single-use applications

Why Metenova MixOne?

Superior mixing

Superior mixing performance at low shear, utilizing the Truelev Technology combined with optimized hard container design.

IMG_8713_adjusted-1

True protection by design

The robust design makes the container easy and safe to transport.

IMG_8708_adjusted

Modular product offer

The MixOne is made to be adaptable to your specific needs of how to connect to the system - meaning the platform allows for many different options of connectors, tubing, and filters, etc.

sesamtest2

Ideal for smaller volumes

Smaller volumes are often associated with plastic bags. The MixOne offers an option to those applications and enables an environment similar to the stainless steel vessel.

mixone easy assembly2

No fuss assembly

The easy installation eliminates any potential operator errors, ensuring a perfect mixing process.

MixOne resources



HubSpot Video

 EFFICIENT MAX SPEED

 Mix up to 350 RPM in just a heartbeat.









HubSpot Video

MIX TO THE VERY LAST DROP

Bearing less design that does not need liquid to lubricate a bearing.










HubSpot Video
RESUSPENSION

The off bottom lift promotes a quick and efficient resuspension of settled solids.









HubSpot Video
EFFECTIVE MIXING
Even at very low speed. This video shows 2% of max power.













FAQ

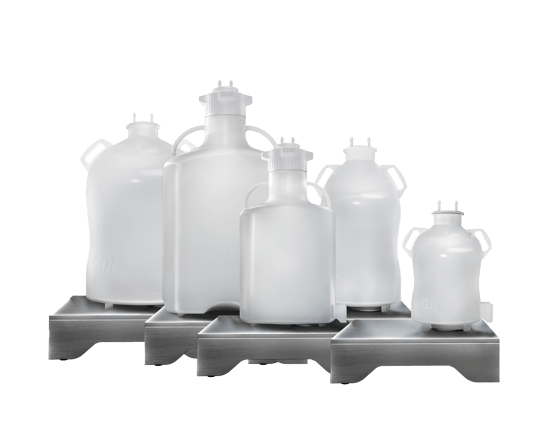

What sizes are available?
The MixOne is modular with an extensive component library of different sizes, tubes, fittings, etc. The one showed in the video is 40L. Please consult your sales rep for your particular needs.
What is the mixing difference between a stirbar and the MixOne?
Stirbars are typical lab mixers that have limited capacity and performance when it comes to mixing at production scale. The MixOne mixer platform is designed to meet and exceed the pharma needs at a production scale, with unparalleled mixing performance in combination with the TrueLev bearingless technology that eliminates any particulate shedding that is related to stir bars.
Is the window container shown in the video available as a product?
The container with a window is perfect for visual evaluation of your mixing performance. It is not a standard product, but it is available upon request. A typical application would be in your R&D evaluation step as a bridge before moving to product models without window. The window model does not come as irradiation compatible and because of that in most cases not suitable for production.
How do I control the MixOne interface?
The MixOne is easily operated by docking the container to the drive unit platform. The mixing system can be controlled in two ways:
  • Digital through either a handheld control panel or through your existing external control system
    Handheld controller ZF
  • Through PLC

    Bild2-2



What are the application purposes of the MixOne configurations showed in the video?
The MixOne container in the video is made for low shear mixing of media that requires a sterile and aseptic environment. After filling trough the filling line it can remain in its closed system for storage. When the product is to be used, the Mix one container is simply reinstalled on the platform and the mixer turned on to resuspend the product. To check the quality of the product and the mixture the system is equipped with four aseptic samples lines made of C-flex tubing that can be welded on a sampling container. To facilitate ease of use during operation and installation, it is equipped with tube holders locating, protecting, and preventing tangling of the tubes during handling. The vent line has a pressure sensor to leak test the unit before use. The container has a low point drain line for easy emptying with an aseptic quick connect at the end of the line.



What are the main components of the MixOne?
  1. Carboy single-use assembly
  2. Platform
  3. Control cabinet
grupp2


How do I install my MixOne?
Carefully place the Single-Use Assembly on the Drive Unit Platform so that the Tank Plate is positioned on top of the Drive Unit and the feet of the Single-Use Assembly are placed in the corresponding holes on the Top Plate of the Drive Unit Platform.

Bild4-1

Make sure that Single-Use Assembly is resting on the bottom of the carboy while positioned on the Drive Unit Platform and feet are in the four locating holes. It should not be resting on its feet or the tank plate. The Single-Use Assembly should be perpendicular to the platform, otherwise, the mixing properties may be reduced.

Bild5-2

What are the technical specifications for MixOne?
Speed range: 0-350 rpm.

Material and chemical compatibility: The platform is made from polypropylene and can be cleaned with alcohol.

Design pressure: The design pressure is 0,5 bar/ 7psi overpressure.

Temperature range: The designed operating temperature span is between +2C and +40C / 36F and 104F.

Tube/port setup: The system can be provided with many different filters, tubings, connectors and most other types of components on the market to meet your needs.

Safety features:

The MixOne is a robust closed system that effectively prevents any accidental product leakage and potentially harmful exposure. The robust design also allows for ergonomic handling, either by hand or with lifting aids, thanks to the integrated handles on top.

The MixOne is equipped with a tube handling system that prevents the tangling of tubes.

Are you missing the answer you are looking for? Submit your question on the below link, and we will get back to you.



Submit a question
