New product: mixing optimized for smaller vessels

July 28, 2020 3 min read

Metenova launches new product to optimize the mixing of smaller volumes. Choose from four different platforms, all of them with a pre-defined optimal design.


When mixing smaller volumes, the vessel becomes more narrow and with a normal design where the mixer is placed on the side of the bottom and the outlet in the middle. The manufacturing of the vessel becomes challenging and involves high risk of warpage during welding of the components into the bottom dish. The location of the mixer is limited, and often the mixer cannot be placed in the optimal position meaning the best mixing performance cannot be achieved. All the different materials and welding need to be recorded and documented during validation.

The solution: Dished End

  • All-in-one: pre-defined optimal design, reducing engineering time.
  • Enabling small tank installation otherwise not possible: due to the off-center outlet location, the mixer can be put in the optimal location for best mixing performance.
  • All of the risky welding is completely eliminated: the entire Dished End is manufactured from a single block of material.
  • The need of validation and documentation is reduced thanks to the use of a single raw material.
  • Mixing performance optimized by combining the correct mixer, mixer location and vessel design ensuring a reliable and predictable performance.

Get to know the product portfolio

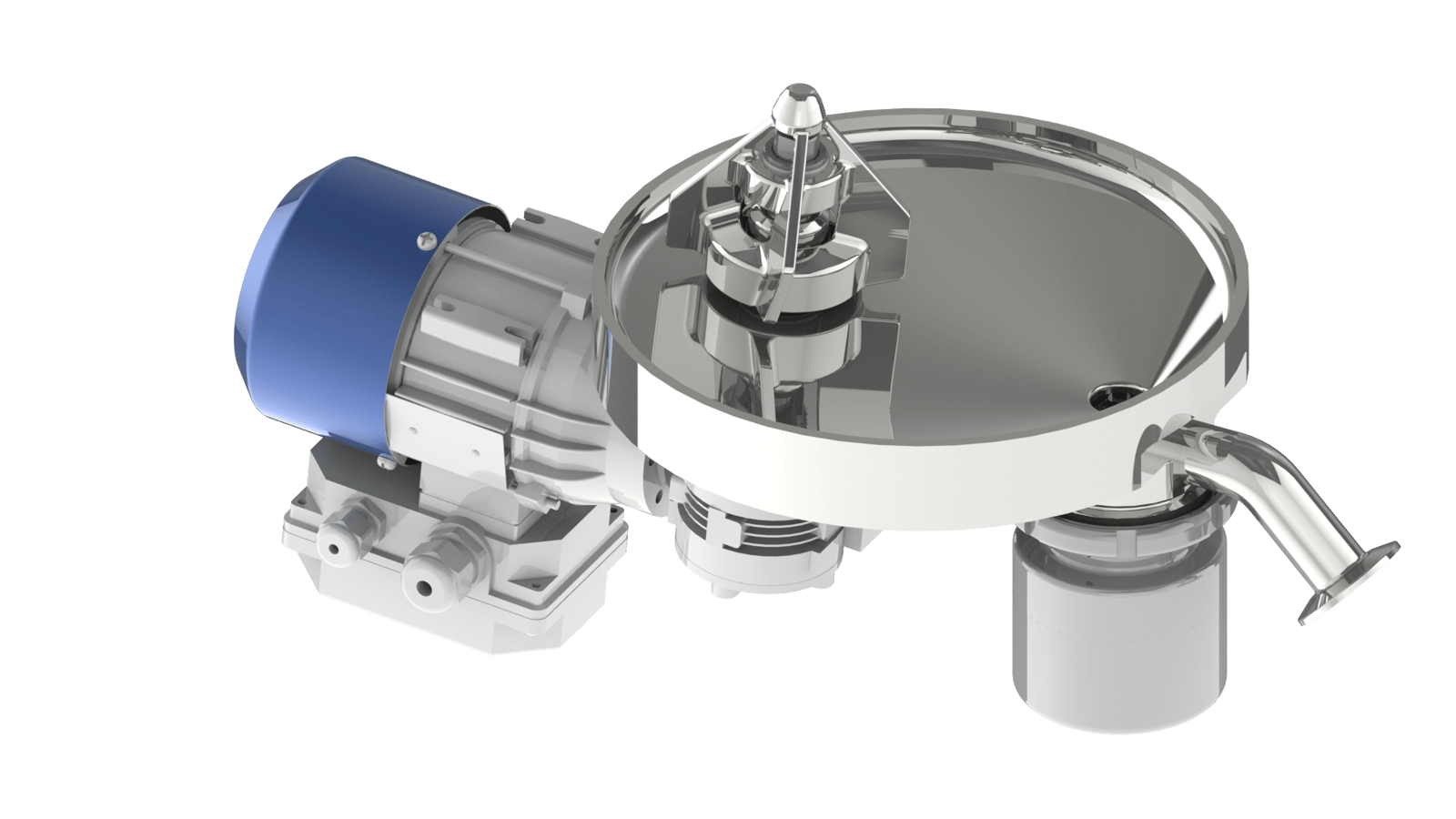

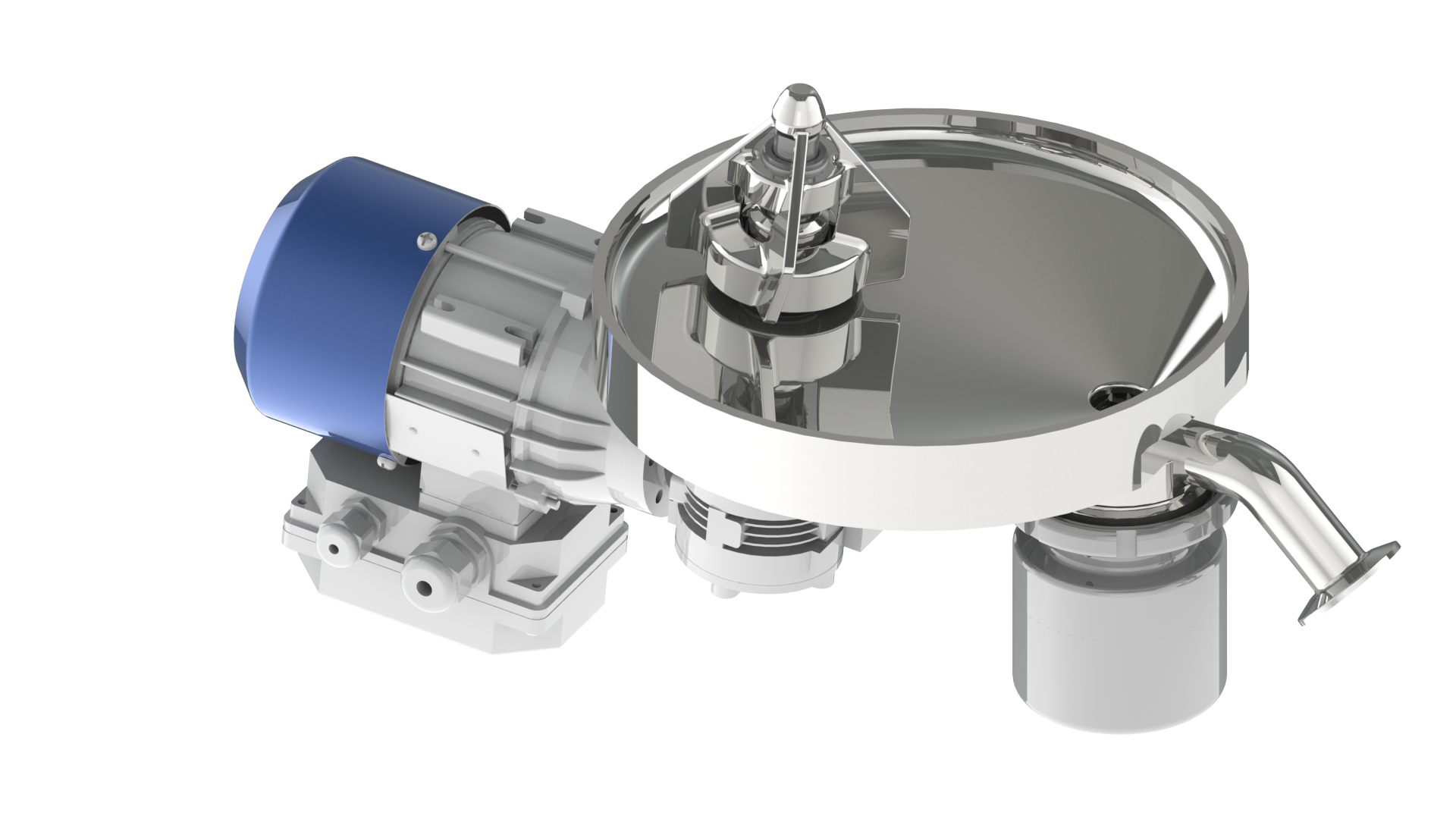

ZG all-in-one
Integrate the high efficiency mixing performance of the ZG platform into the a single dish free of welding with high aseptic design and optimal location of the mixer for best result.ZG2 med mixer_1

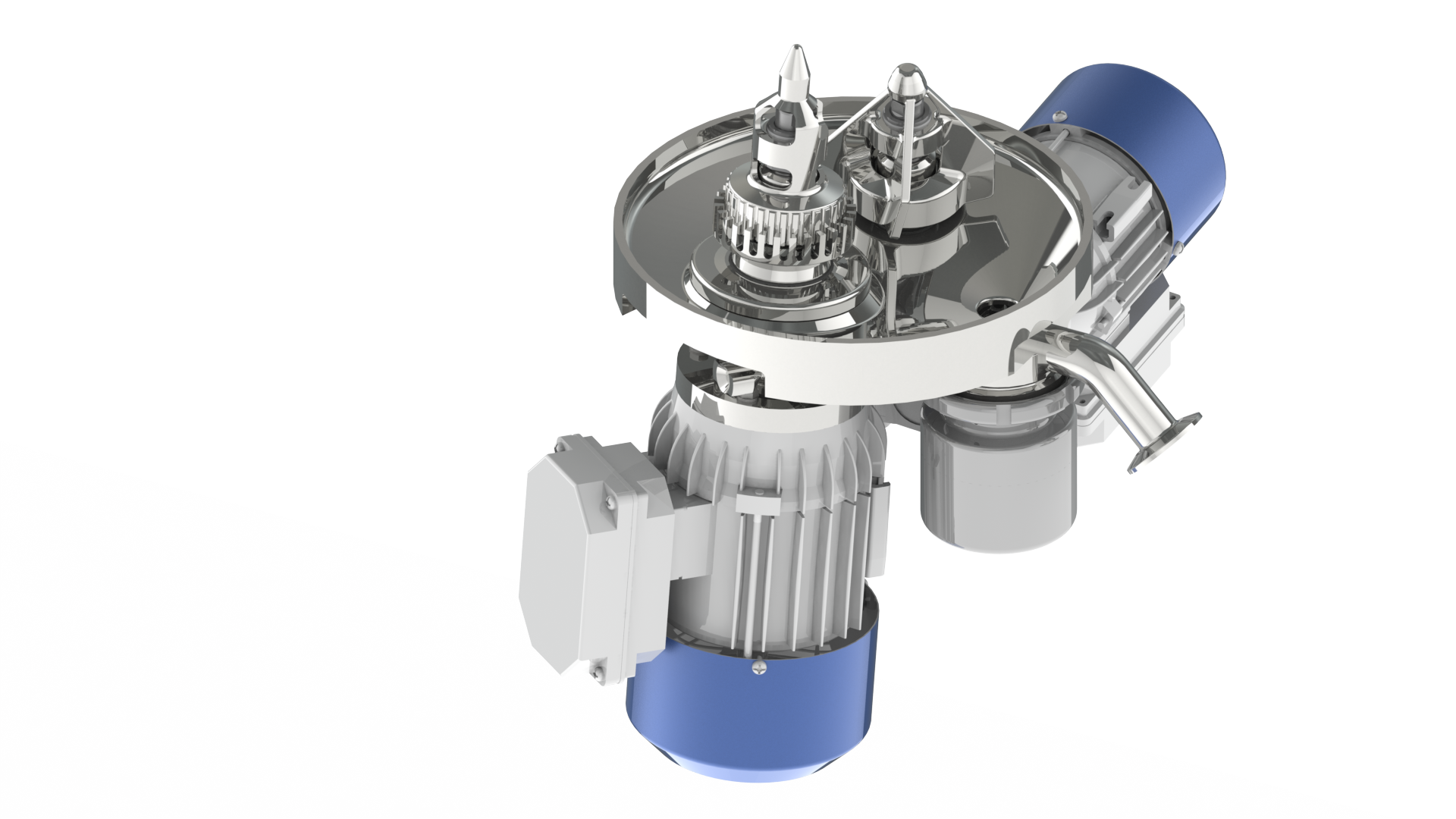

ZG2 & Flange
Combinating two applications
By combining the high shear or high power with the ZG platforms, a multifunction system is achieved. This products allows to combine high shear applications
with normal mixing.

ZG2+Flange med mixer_1

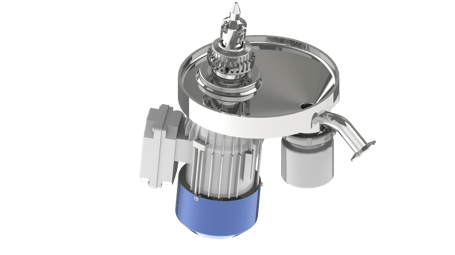

Offers flexibility between platforms
The flange version provides a flexible solution for the medium and high shear applications and accomodates both the high shear and high power platforms.

Flange med mixer_1

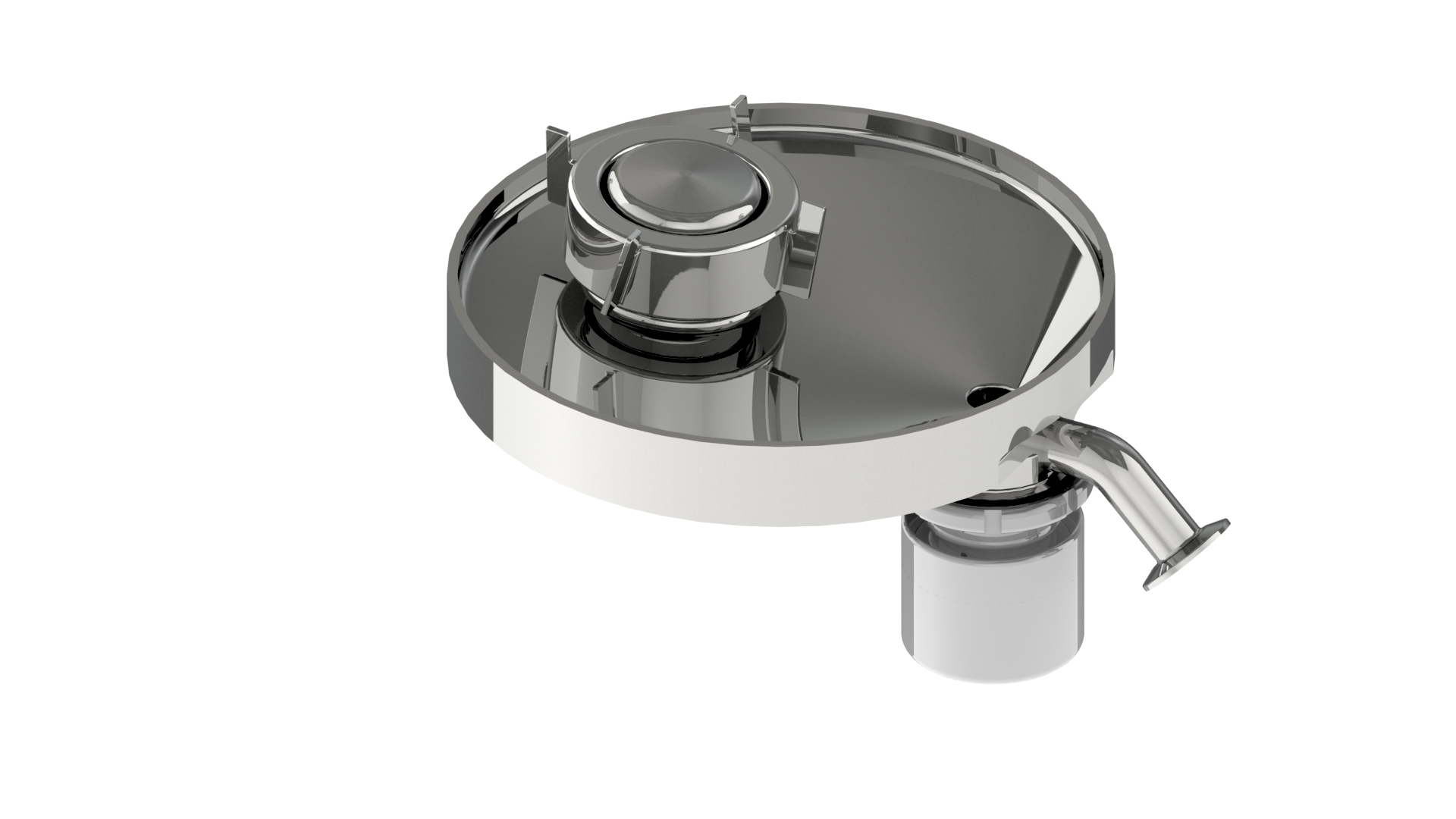

Low shear premium innovation
The astonishing truelev mixer provides a completely unique performance perfect for your low shear application. The mixing system can be run on minimal
volumes, ensuring minimal product loss.

ZF100 med mixer_2


With a long experience in the engineering of magnetic mixers, and comprehensive knowledge of hands-on application – we keep challenging the limits of mixing technologies.
